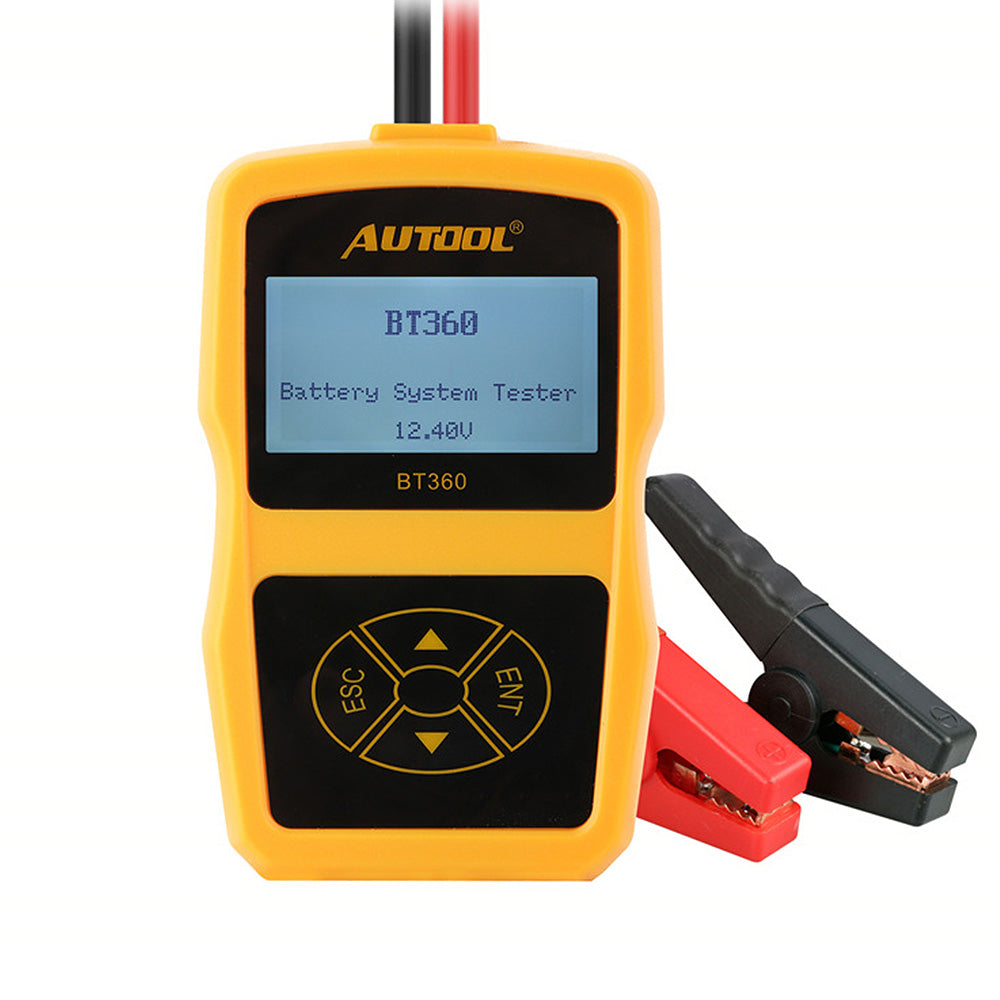

AUTOOL BT360 Car Battery Load Tester is dedicatedly developed to test 12V regular flooded, automotive lead-acid batteries, AGM flat plate, AGM spiral, GEL, and EFB batteries. It provides techs or DTYer with a quick, simple and cost-effective solution to know the battery's charging status better , check the battery's health and detect faults.

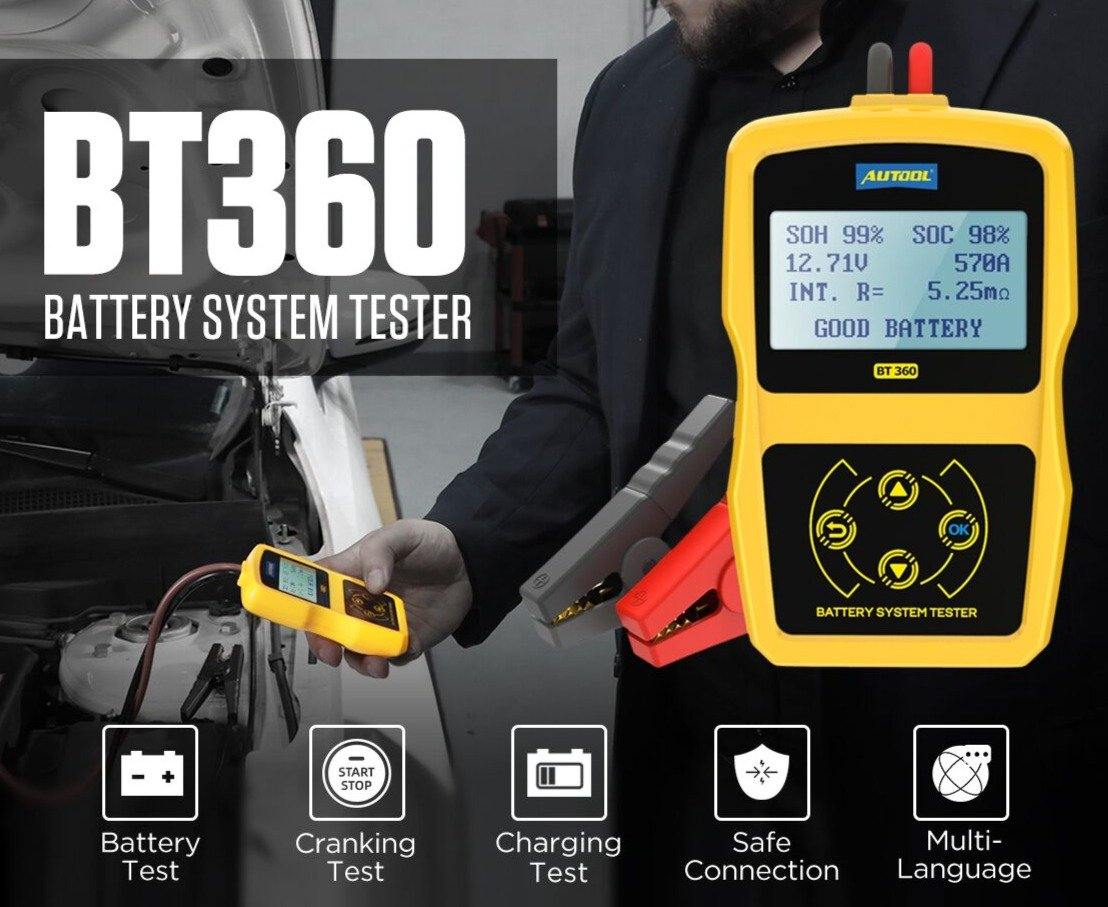

AUTOOL BT-360 Battery Tester includes Battery test, Cranking test, Charging test functions. Mainly targeted to analyze the battery healthy status. It directly detects whether the battery is good or bad, and present suggested solutions.
Test standards include most battery standards in the world, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB, which covers from 100- 2400 CCA, 30-220 AH.
Using advanced conductive technology, it can directly display the high accuracy results of vehicle info. Deigned with polarity reverse connection protection. It will not damage the device or affect the car or battery.
Product information:
Item No.: MOT40-2
Power supply voltage: 12
Working temperature: -20~55
Three Functions Test Operation Steps of AUTOOL BT360 Car Battery Load Tester
Step 1. Connect the 12V battery, red clips to positive pole and black clips to negative pole.
Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.
Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.
Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

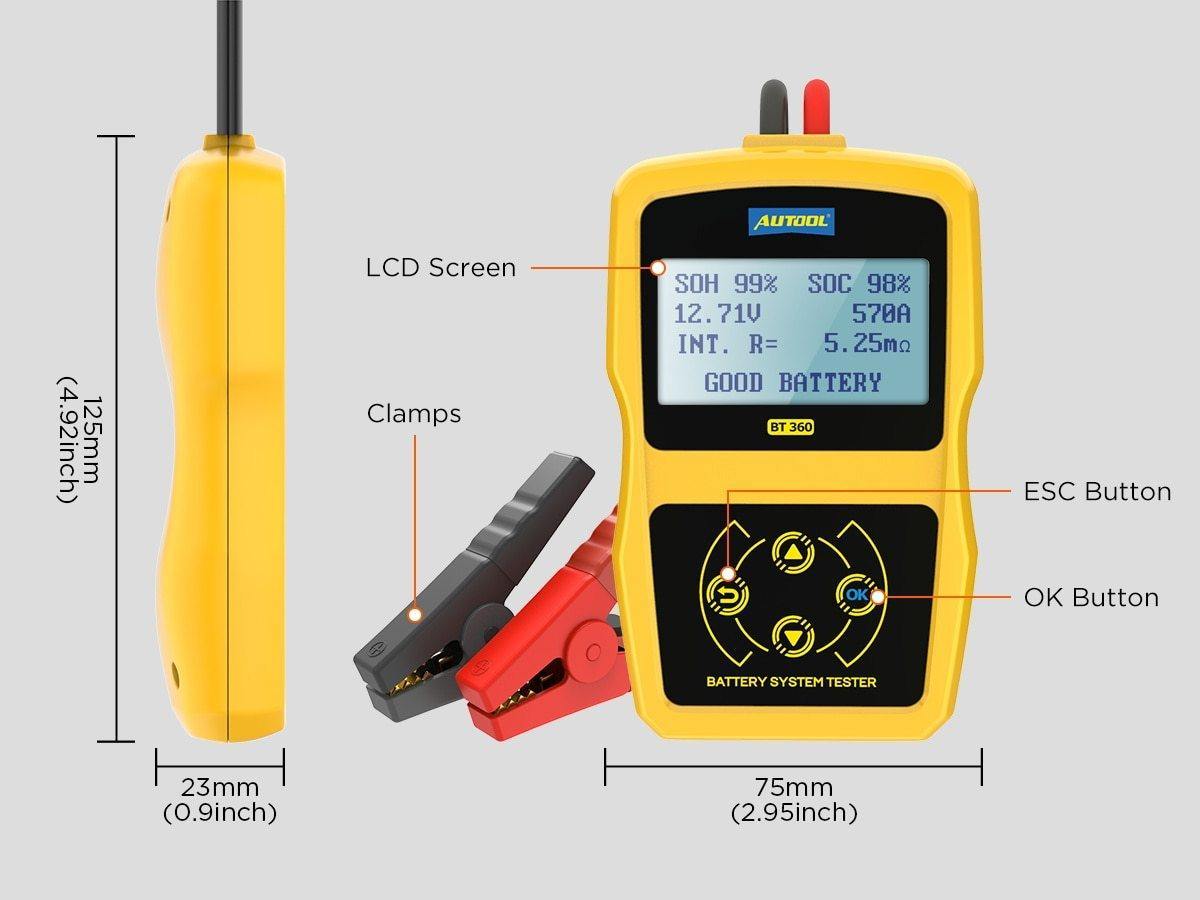

Size Information:
Size: 190x165x60
Packing list:
Detector x1
