Bluetooth 5.0 Tire Pressure Monitoring System
- Multiple alarm types: Bluetooth5.0 Tire Pressure Monitoring System provide five types of alarms include quick/slow leak alarm, High voltage alarm, High-temperature alarm and low battery alarm. Users can set the pressure, temperature and battery alarm values
- Operating System: The Tire Pressure Monitoring System is designed for Smartphone, just connect your smartphone with APP"TPMSII" for IOS and Android. Bluetooth 5.0 with a high-speed connection, stable transmission, accurate data, Longer Acceptance Distance.
- Easy installation and disassemble: 1, Scan QR code on the card, then download and install. 2, Please follow the sensor's mark and install the sensor on the corresponding tire until getting each sensor date The installation is complete. please install slowly to make the air pressure fully contact the sensor. (The pressure range that can be set is 1.5~92.6Psi, 0.1~6.4Bar.)

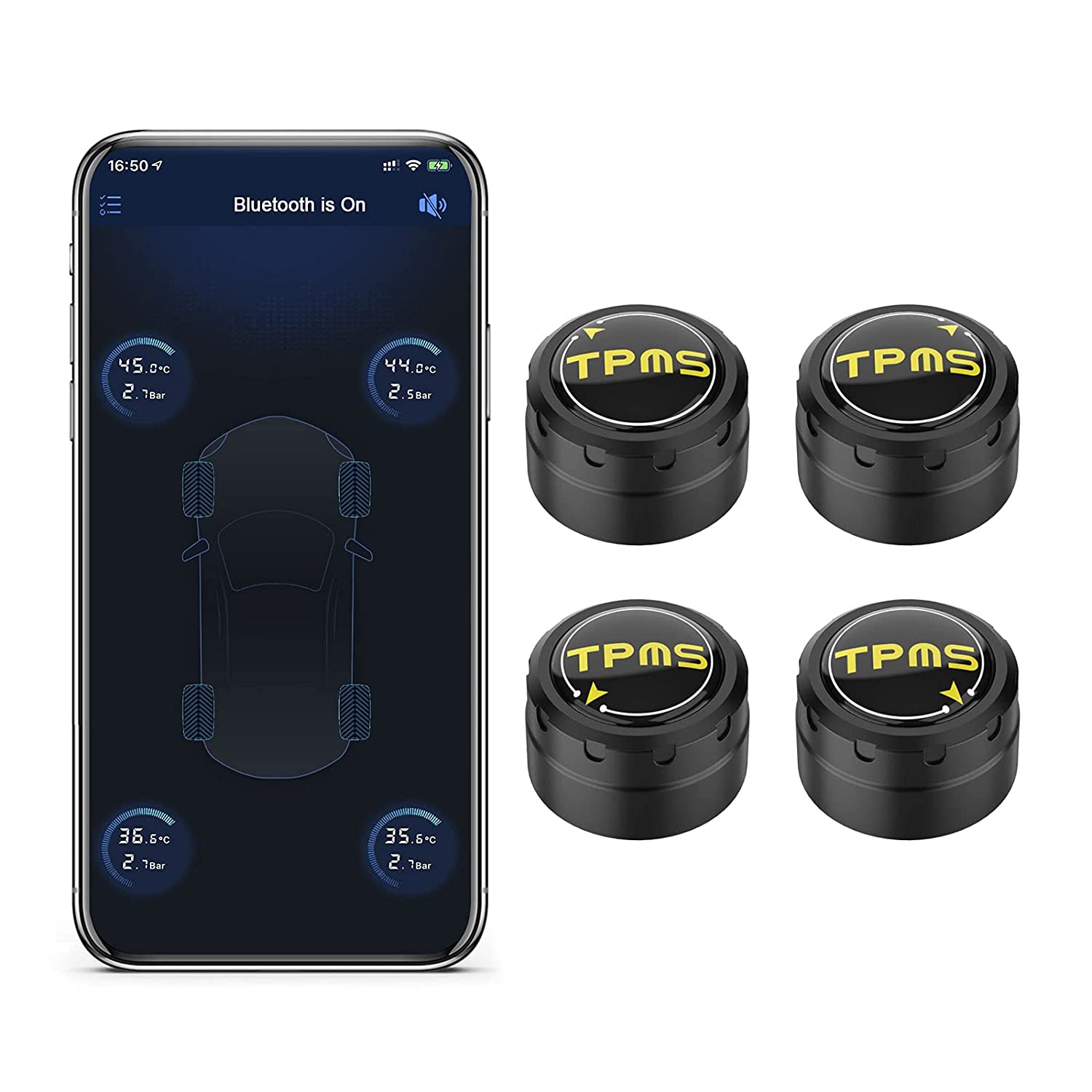

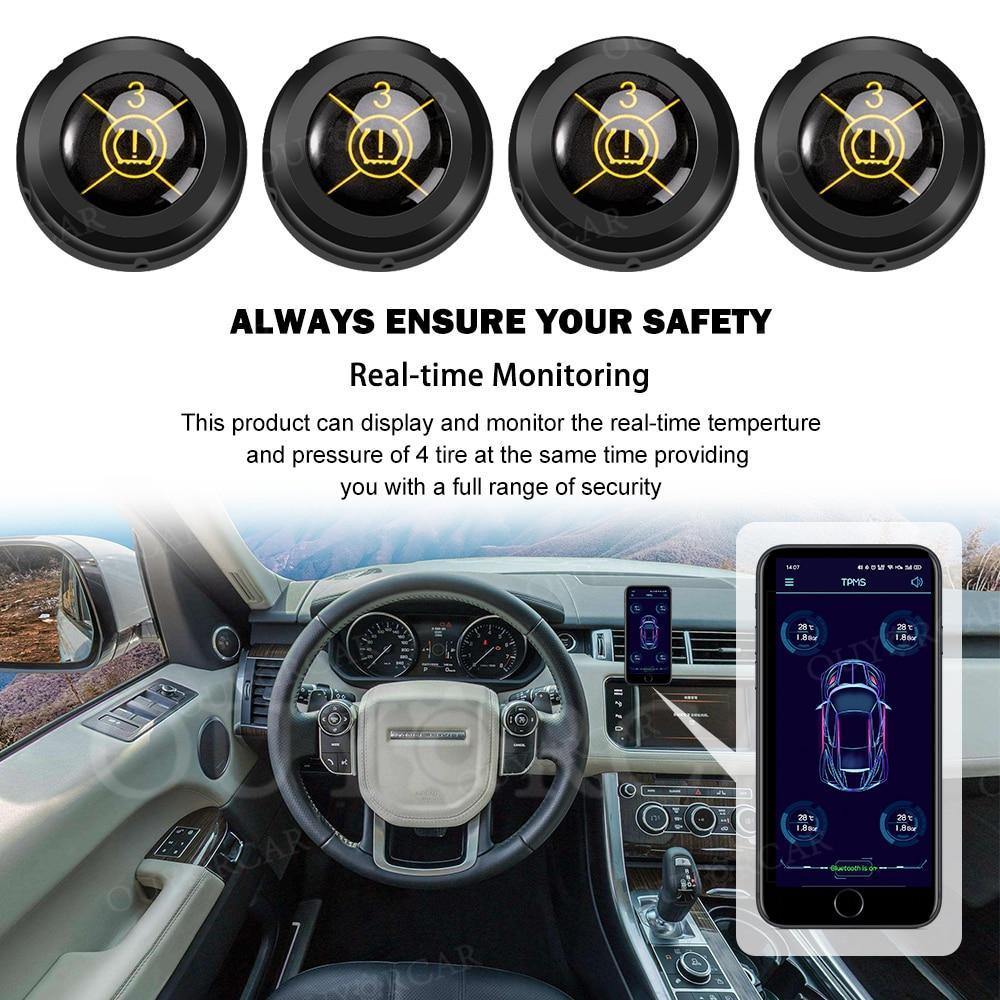

- 4 Tire external sensors: Dynamically monitor tire pressure on 4 wheels at the same time, prevent damage from a flat tire, Improve fuel efficiency, prolong tire life span, During travel, tire pressure and temperature displayed in real-time and send an alert when statistics' abnormal.
- Necessary alarm system: The Bluetooth external TPMS sensors are with Low Power Consumption and long-lasting battery life for almost 2~3 Years. Dynamically monitor tire pressure and temperature, prolongs tire life, improve road safety.
Product information:
Pressure Detecting Range: 0 - 8.0 Bar
Pressure Setting Range: 1.0 - 6.4 Bar
Working Voltage: 3V
Working Current: 100μA
Standby Current: ≤ 2.2μA
Bluetooth Working Frequency: 2.4GHz
Bluetooth Transmitting Power: 0dBm MAX
Wait Time: ≤ 5s
Display: Phone APP
Waterproof Standard: IP67
Working Humidity: 95% MAX
Tire Pressure Detection Range: 100-1300kPa
Tire Pressure Detection Accuracy: ± 10kPa
Tire Temperature Detection Accuracy: ± 3℃
Working Temperature: -30℃ ~ +80℃ (Outer Sensor)
Storage Temperature: -30℃ ~ +85℃ (Outer Sensor)
Battery Capacity: 140mAh (Outer Sensor)
Battery Life: 3~5 Years (Outer Sensor)
Sensor Weight: 8g±1g(Outer Sensor)
Packing list:
External tire pressure monitor*1
